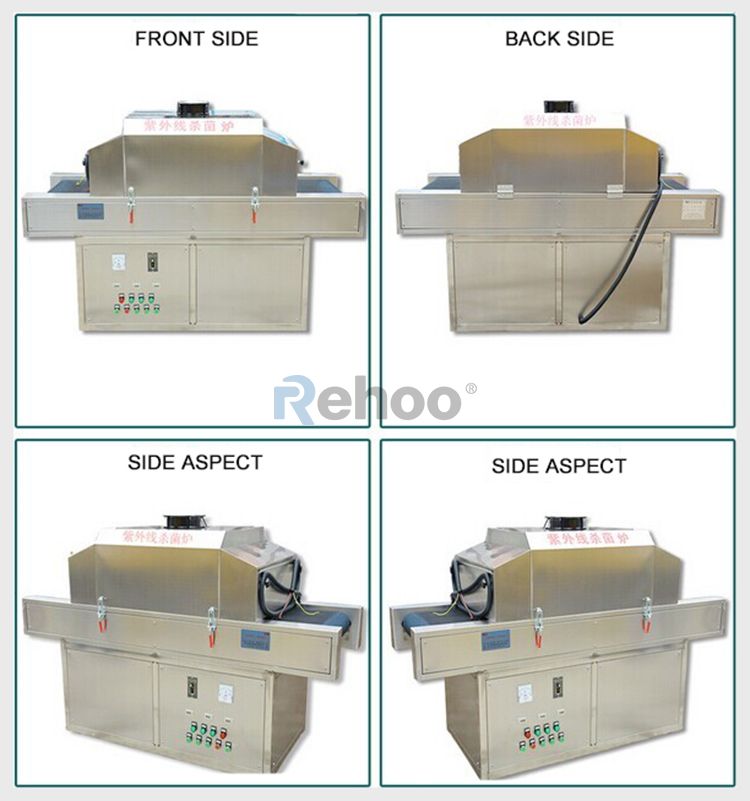

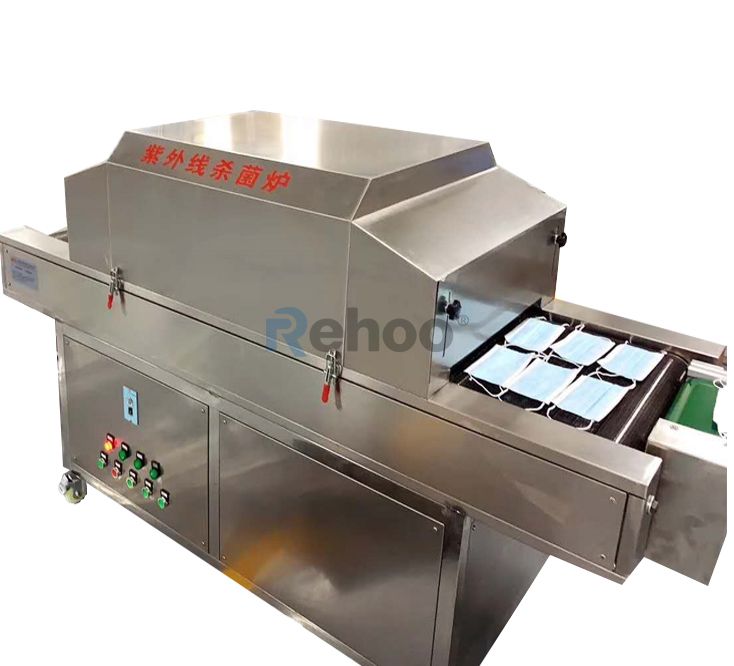

Ultraviolet Sterilizer RH-SJ-2000

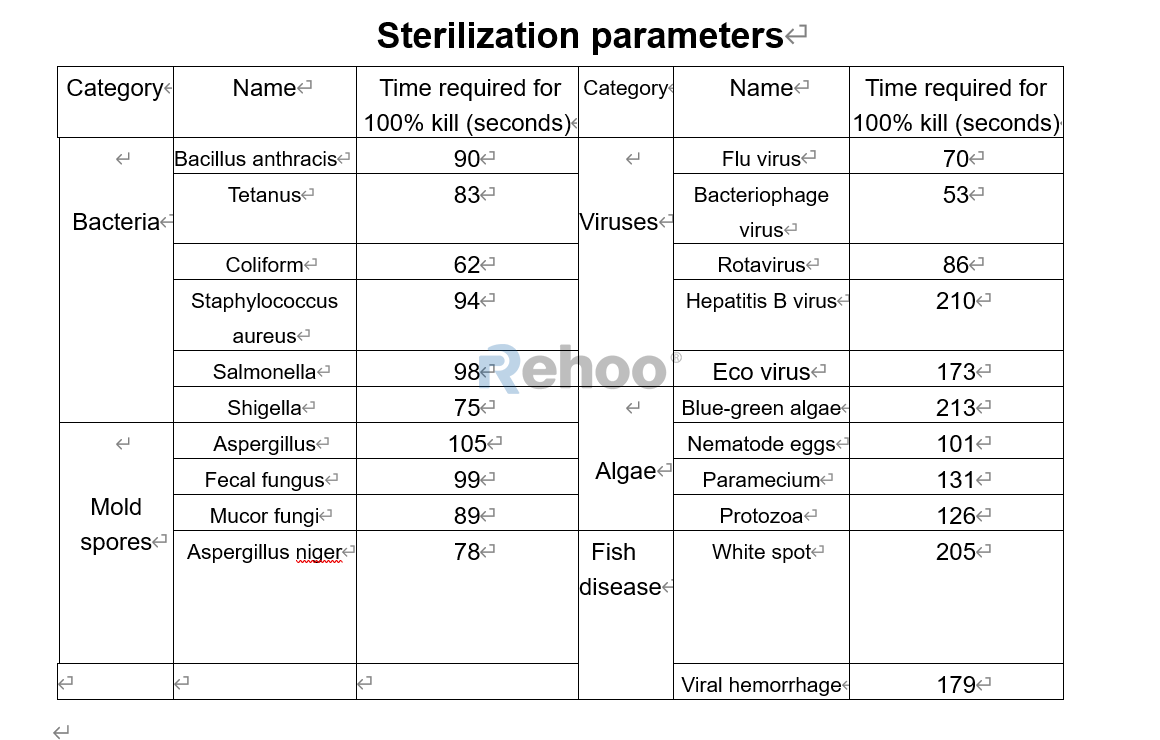

Sterilization parameters

 Equipment electrical parts

1. Main switch: 15A

2. Total power: 1.5KW

3. Range of inorganic belt speed regulation: 0-5m / min

4. Transportation motor: 800W

5. Governor: 500W

6. Exhaust fan: CY-125

7. Ammeter: a set of 50A

8. Working voltage: 220V ± 5%  three-wire system 50Hz

Sterilization device　

1. Effective radiation of ultraviolet light source

Lamp length 600mm

2. 16 pcs of UV ultraviolet sterilization lamps * 20W ultraviolet lamps are installed inside, up and down, left and right, 360 ° degree sterilization.

Protection device

1. Overvoltage and overcurrent protection

2. Fault alarm prompt

3. Equipment overload protection

Maintenance of Ultraviolet Sterilizer

1. Regular inspection to ensure the normal operation of the UV lamp.

2. After continuous use for 8000 hours or one year, the UV lamp should be replaced. When replacing a new lamp, first unplug the lamp power socket and take out the ultraviolet lamp. Be careful not to touch the quartz glass of the new lamp with your fingers, because the stain will affect the strength of the light, and at the same time, put the lamp into the cavity of the sterilizer carefully.
