CWC-FS02 Low Profile Industrial Floor Platform Scale
CWC-FS02
It is suitable for the use of trolley to push goods and weigh the environment;
When the goods are frequently pushed and placed for weighing, the scale body does not produce displacement. At the same time, reduce labor intensity and improve work efficiency;
Features
1.Platform: Low Profile Textured Non Skid Steel
2.Color: Standard Blue,Gray,other color can be customized.
3.Platform Length:0.8*0.8m,1*1m,1.2*1.2m,1.2*1.5m,1.5*1.5m,other can be customized.
4.Feet: Adjustable Height Nonskid Feet
5.Connectivity: RS-232 Serial Port optional
6.Power source:AC Power(DC 9V Adaptor Included) Or 3 AAA batteries
7.Indicator:Stainless Steel – Wall Mountable.FCC certification.
8.Display:6 Digits (20mm High) LCD Display With Backlight
Specifications
| Max.cap. | Division | Platform Size |
| 1T, 2T | 0.5KG, 1.0KG | 0.8*0.8M |
| 1T, 2T | 0.5KG, 1.0KG | 0.8*1.0M |
| 1T, 2T, 3T | 0.5KG, 1.0KG, 1.0KG | 1.0*1.0M |
| 1T, 2T, 3T | 0.5KG, 1.0KG, 1.0KG | 1.0*1.2M |
| 1T, 2T, 3T, 5T | 0.5KG, 1.0KG, 1.0KG, 2.0KG | 1.2*1.2M |
| 1T, 2T, 3T, 5T | 0.5KG, 1.0KG, 1.0KG, 2.0KG | 1.2*1.5M |
| 1T, 2T, 3T, 5T | 0.5KG, 1.0KG, 1.0KG, 2.0KG | 1.5*1.5M |
Product Highlights
1. The scale is made of stainless steel, waterproof and anti-corrosion.

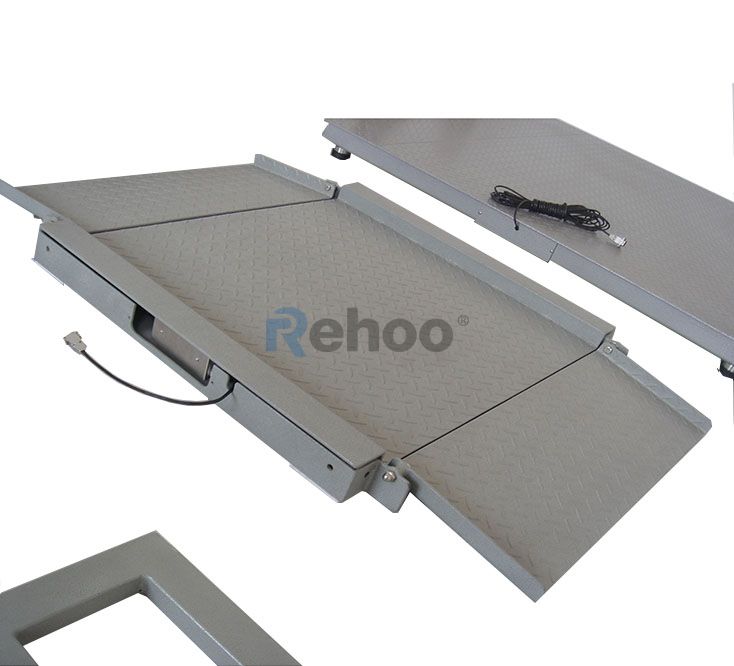

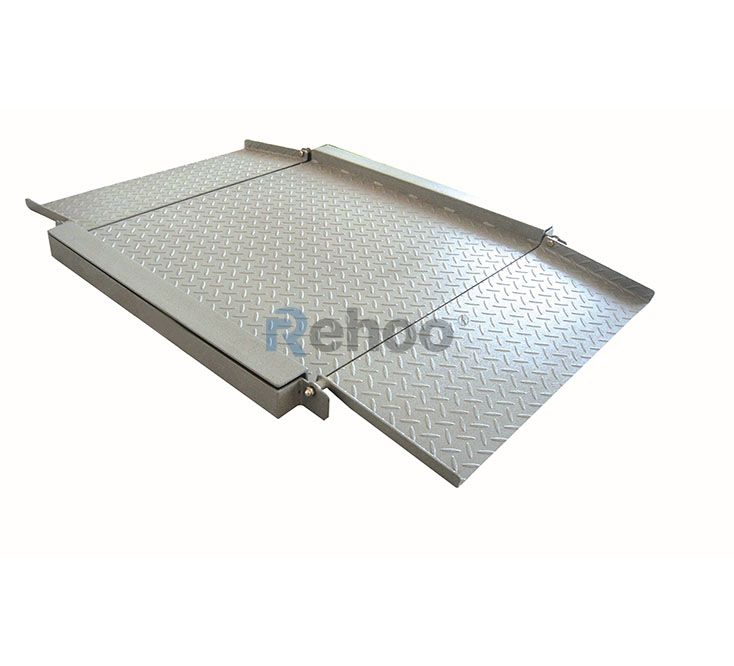

2. Standard configuration with double inclined slope guide structure, which can be folded when moving, saving transportation space, easy to disassemble and transport, and the scale body is easy to move.
3. The height of the weighing surface is extremely low. At the same time, the foldable double slope design reduces the labor intensity of the worker's cart on the scale and improves the work efficiency.
4. With frame structure and tumbler sensor with automatic limit and automatic reset function. It can effectively protect the weighing platform and the accuracy of measurement results.
