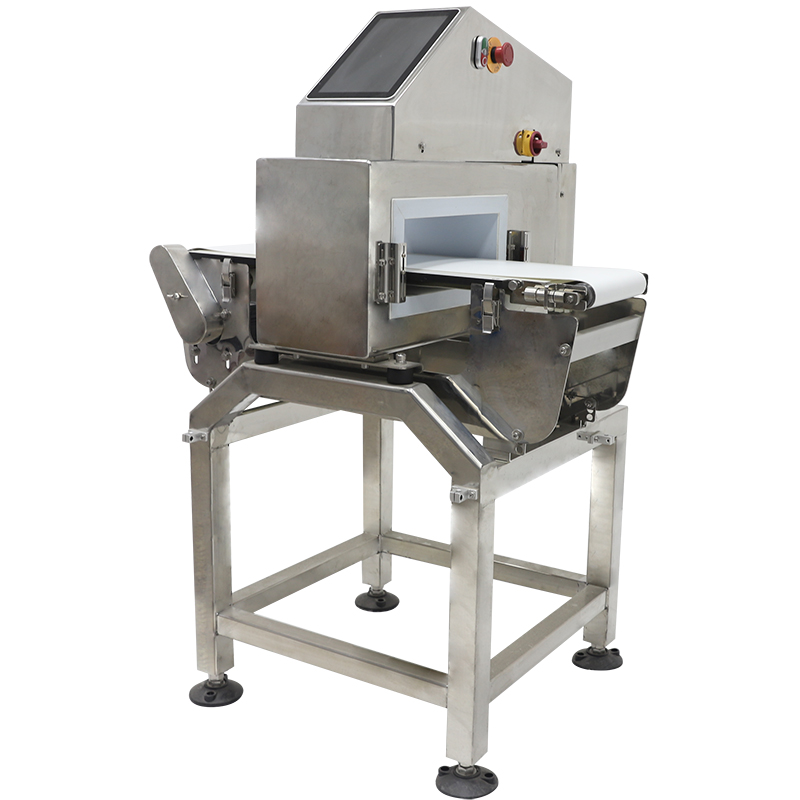

Metal Detector MDC-Symmetric D
MDC-Symmetric D
Applied to high sensitive metal detection
PURPOSE
● Especially designed for Food Industrial
● Widely used for detecting body touched products, such as: cosmetic, tissue, rubber, plastic, chemic......
Features
● Multi-Frequency & Dual-System Detection.
● Very high resolution for Phase-Angle adjustment.
● Automatic product effect & sensitive study.
● Based on High speed 32bit CPU control unit.
● LCD with Touch Screen, Easy to operation.
● High speed 32bit DSP and advanced signal filter.
● Friendly operation system with Multi-Language.
● 100 products memory.
● Detection & Login records.
● Standard equipped USB port for data export.
● Enthernet connection capability.
● Tools free conveyor belt disassemble.
● Small size conveyor design.
● IP65 optional.
Specifications
| Model | MDC-Symmetric D |
| Detection Theory | Balanced Coil |
| Detection Adjustment | Auto and Manual |
| Conveyor Speed | 25m/min(Adjustable) |
| Sensitivity Adjustment | Manual |
| Rejection System | Air Blast, swing arm, arm pusher(optional) |
| Operation Way | Touch Screen |
| Alarm | Buzzer |
| Power | AC110V/220V 50 -60HZ |
| Rated Output | Appr.300W |
Series Product
| Width*Height | Sensitivity |
| 400mm*100mm | Fe¢0.5mm SUS¢1.0mm |
| 400mm*120mm | Fe¢0.6mm SUS¢1.2mm |
| 400mm*150mm | Fe¢0.8mm SUS¢1.5mm |
| 400mm*200mm | Fe¢1.0mm SUS¢2.0mm |
