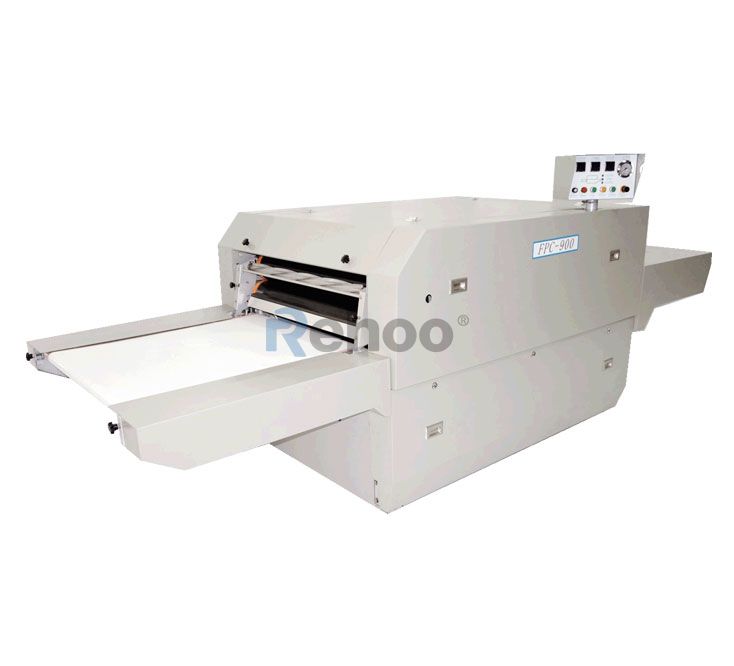

Fusing Press FPC-900N
FPC-900N
Advanced continuous Fusing Machine
Designed for textile and garments industry
Application:
Designed for fabric of limpness and thermotolerance, eg. Seamless underwear.
Fusing for whole piece of fabric(can be equipped with delibery and collecting device).
Features
1. Designed with large wrinkle-free silicone roller and large cylinder to make pressure stable and distribute evenly, make fusing better.
2. Three-Phase heating system is controlled by precision temperature controller to make better temperature, heating plate is uniformly fitted in front, middle and back in the heating charmber. Adopt proportional calculus control mode to assure long working time and precise temperature, make the fabric heat evenly.
3. Special monitorable heating system and belt modifying system which can distinguish fault automatically and make maintenance easier.
4. Auto belt modifying system to prevent deviation and buckling of belt.
5. Designed with upper plectrum and lower scraper to make fabric easy to be stripped from belt but with no buckling.
6. Strong air draft cooling system and 9 big power cooling fan to make better fabric forming.
Specifications
| Model | FPC-900N |
| Heater | 20KW |
| Motor | 250W |
| Power Supply | 3P 380V |
| Max Temperature | Normal~200℃ |
| Use Air Pressure | 0.2~05Mpa |
| Fusing Time | 7~34 Sec |
| Fusing Width | 900mm |
| Machine Dimension | 3900mm×1480mm×1280mm |
| Packing Dimension | 3000mm×1780mm×1600mm |
| N.W/G.W | 930/1000Kg |
